Phone Signal Booster Amplifier GSM 3G 4G Booster Mobile Cell Phone Repeater with Two Indoor Antenna Custom logo
Product Description

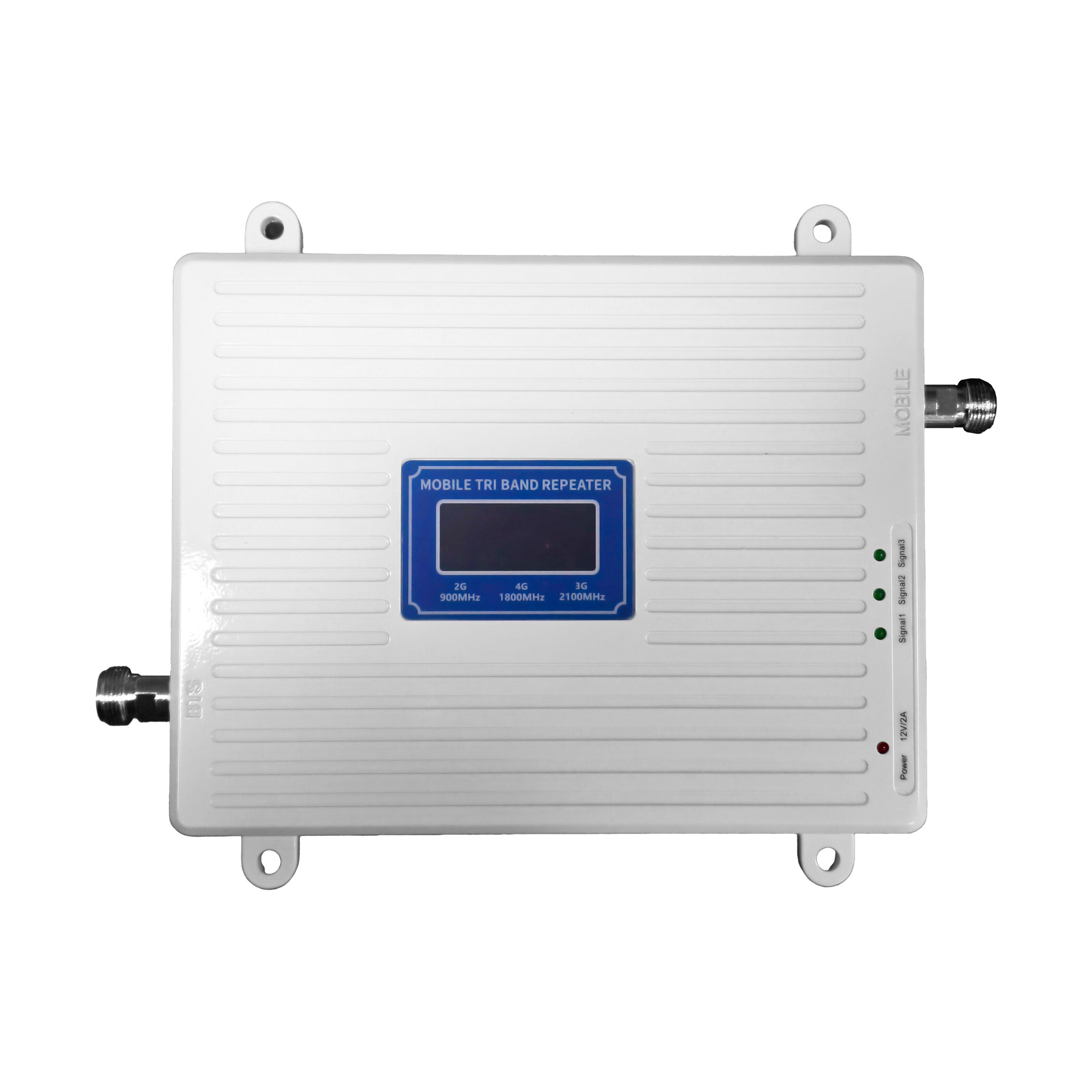

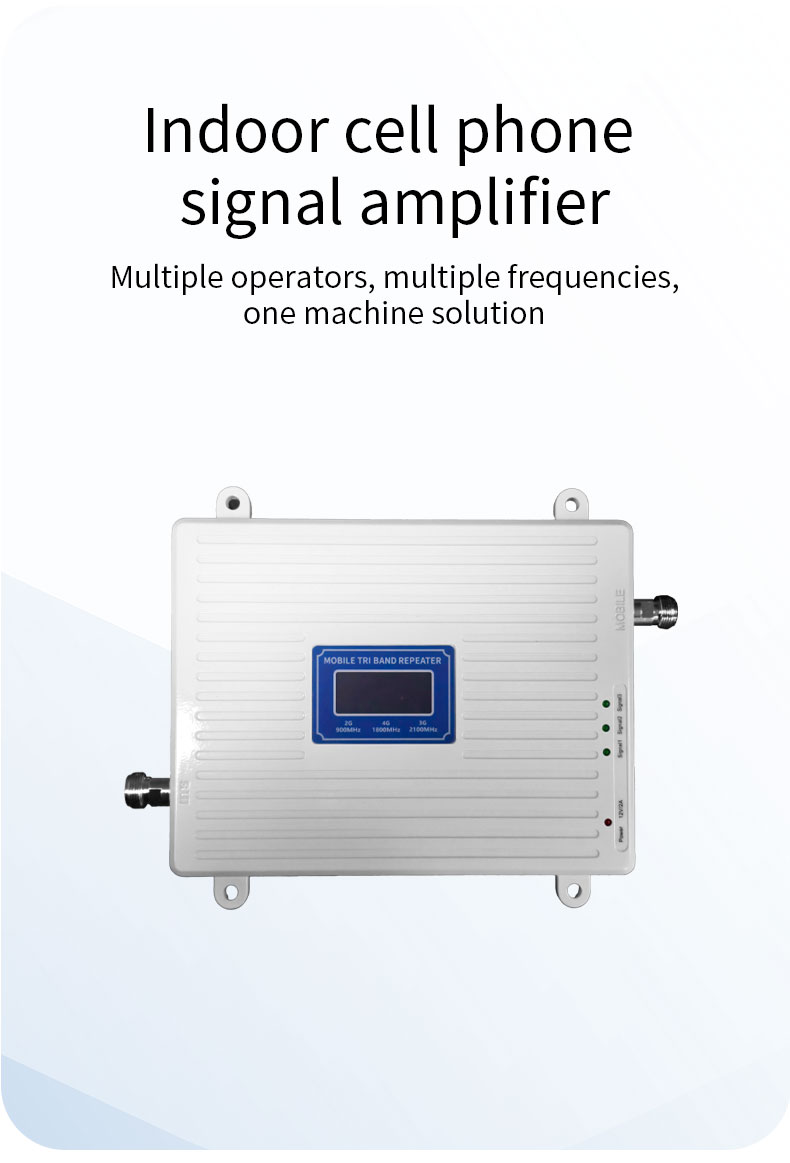

900/1800/2100MHz Tri-Band Mobile Signal Booster (Supports 2G, 3G, 4G LTE, LCD Display)
Key Features & User Value
1
Comprehensive tri-frequency coverage solves pain points of 2G/3G/4G
Selling Points: Supports three core frequency bands: 900MHz (2G), 1800MHz (4G), and 2100MHz (3G), which can simultaneously improve call quality and internet speed.
Suitable for: Compatible with networks of mainstream operators in most countries worldwide (such as most regions in Europe, Asia, and Africa), offering a one-stop "all-in-one" solution for signal dead zones.
Suitable for: Compatible with networks of mainstream operators in most countries worldwide (such as most regions in Europe, Asia, and Africa), offering a one-stop "all-in-one" solution for signal dead zones.
2
Smart LCD high-definition display screen for real-time status control
Selling Points: Equipped with an extra-large LCD display that can show signal strength across all frequency bands in real time.
User value: The installation process is more intuitive, allowing users to adjust antenna positions based on screen readings for optimal results, with easy debugging without professional instruments.
User value: The installation process is more intuitive, allowing users to adjust antenna positions based on screen readings for optimal results, with easy debugging without professional instruments.
3
Professional-grade heat dissipation design for long-lasting and stable performance
Selling Points: The body uses a high-quality aluminum alloy casing combined with striped cooling fins on the back, offering excellent cooling efficiency.
User value: Ensures the equipment does not overheat or throttle during 24-hour high-intensity operation, significantly extending the equipment's service life.
User value: Ensures the equipment does not overheat or throttle during 24-hour high-intensity operation, significantly extending the equipment's service life.
4
Deep support for customized services (OEM/ODM)
Selling Point Description: The prominent "logo" reserved space in the center indicates that the product supports high customizability.
Business Advantages: Brands and wholesalers are welcome to customize exclusive logos, packaging, and colors, helping partners build their own brands with strong B2B market competitiveness.
Business Advantages: Brands and wholesalers are welcome to customize exclusive logos, packaging, and colors, helping partners build their own brands with strong B2B market competitiveness.
5
High gain and large coverage, easily penetrating floors
Selling Point Description: Features high output power (typically 17-23dBm) and high gain (typically 65-70dB), with a single-unit coverage area of 300-500 square meters.
Applicable scenarios: Widely applicable to large or heavily shielded places such as basements, large warehouses, urban village office buildings, and rural detached houses.
Applicable scenarios: Widely applicable to large or heavily shielded places such as basements, large warehouses, urban village office buildings, and rural detached houses.
6
Plug-and-Play installation (Plug & Play)

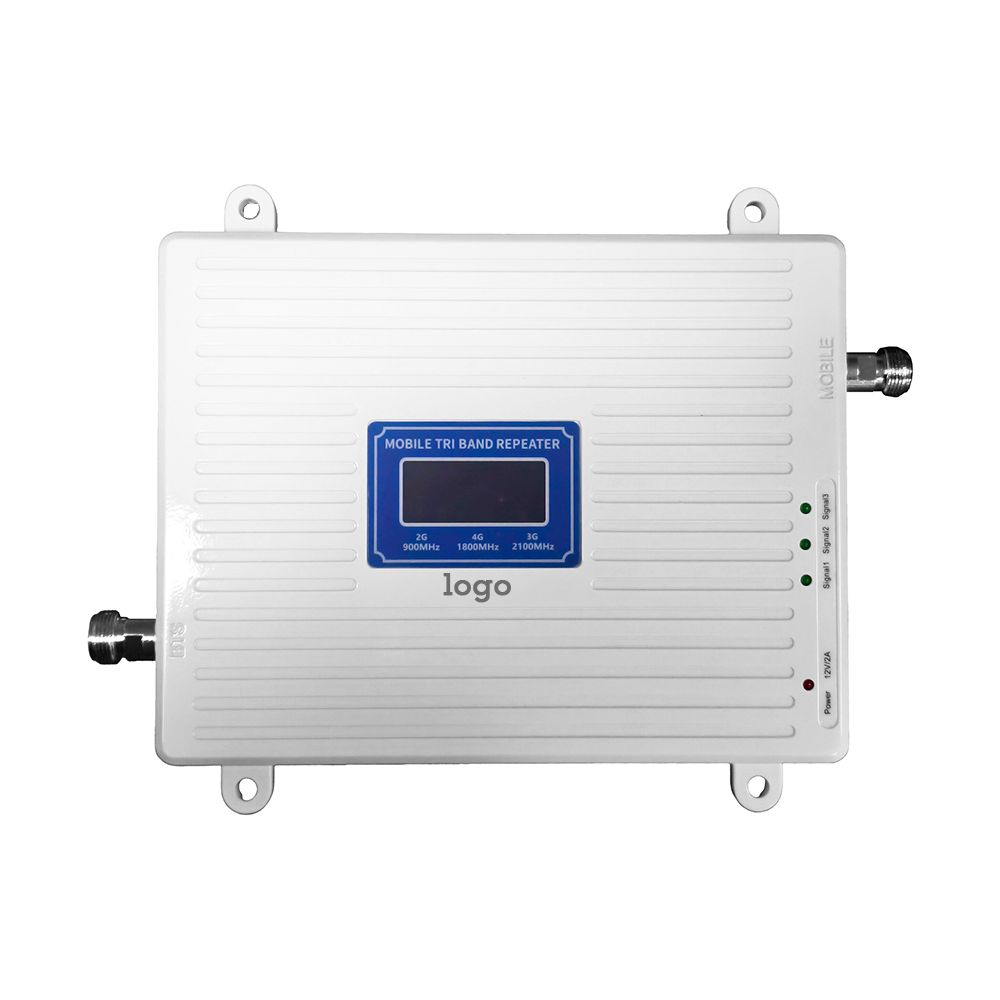

Selling Points: The body is clearly marked with BTS (Outdoor Antenna Interface) and MOBILE (Indoor Antenna Interface), with standard interface (N-type).
User value: Even non-technical personnel can quickly get started. Just connect the internal and external antennas and power on, and the signal instantly restores to full power.
User value: Even non-technical personnel can quickly get started. Just connect the internal and external antennas and power on, and the signal instantly restores to full power.
Technical Specifications
| Project | Indicator Requirements (Uplink) | Indicator Requirements (Downlink) | ||
|---|---|---|---|---|
| Maximum output power (dBm) | 23±2 | 23±2 | ||
| Bandwidth (MHz) | 160 | 160 | ||
| Sensitivity Level | -85 | -85 | ||
| Gain (dB) | 70±3 | 70±3 | ||
| Gain adjustment range (dB) | 0-30 @1dB step | |||
| Gain adjustment error (dB) |
0-10dB: Total error within range ≤ ±1dB 10-20dB: Total error within range ≤ ±1dB >20dB: Total error within range ≤ ±1.5dB |
|||
| Automatic level control range (dB) | 0-30 | |||
| Noise figure (dB) | ≤5 | |||
| Fluctuations within the band (dB) | ≤5 | |||
| Input and output standing waves | ≤1.5 | |||
| Transmission delay (μS) | ≤1 | |||
| Out-of-band inhibition (dBc) |
±5MHz offset: ≤-5 ±8MHz offset: ≤-30 ±12MHz offset: ≤-50 |
|||
| Spectral Emission Template (dBm) |
0.05 MHz < f_offset < 5.05 MHz / 100k ≤-27 5.05 MHz < f_offset < min(10.05 MHz, f_offsetmax) / 100k ≤-27 10.05 MHz < f_offset < f_offsetmax / 100k ≤-27 |
|||
| Adjacent channel suppression ratio (dBc) | ≤-40 @100MHz; ≤-50 @200MHz | |||
| Vector amplitude error (ALC starting control) | <3.5% @256QAM | |||
| Accuracy of up and down switching times (μs) | 2 ≤ Δ ≤ 3 | |||
| Synchronization Sensitivity (dBm) | ≤-94 (carrier interval 15KHz) | |||
| Maximum Allowable Input Level (dBm) | ≤1 | |||
| Monitoring alarms | Local (USB) | |||
| Power supply | AC220V±20% (Power Adapter) | |||
| Maximum Power Consumption (W) | 10 | |||
| RF interface | SMA(F) | |||
| Input/Output Impedance (Ω) | 50 | |||
| Operating Temperature (°C) | -40 ~ +85 | |||
| Relative humidity (%) | 5 ~ 95 | |||
Product Gallery
Frequently Asked Questions
Q
What frequency bands does this mobile signal booster support?
This tri-band mobile signal booster supports three core frequency bands: 900MHz (2G), 1800MHz (4G LTE), and 2100MHz (3G), which covers calls and internet connectivity for most regions worldwide.
Q
What is the coverage range of a single booster unit?
Due to its high output power (17-23dBm) and high gain (65-70dB), a single unit can cover an area of 300 to 500 square meters, making it highly effective at penetrating walls and floors.
Q
How does the LCD display help during installation?
The smart, high-definition LCD screen displays real-time signal strength for all frequency bands. Users can easily align and adjust antenna placement for maximum reception without requiring professional testing equipment.
Q
Can I run this signal booster continuously for 24 hours?
Yes. The product features an aluminum alloy casing with striped cooling fins on the back. This professional-grade heat dissipation design prevents overheating, ensuring stable performance during non-stop operation.
Q
Is the signal booster easy to install for non-technical users?
Absolutely. The unit is designed for Plug-and-Play installation. Standard N-type interfaces are clearly labeled as BTS (for the outdoor antenna) and MOBILE (for the indoor antenna), allowing for straightforward setup.
Q
Are OEM and ODM custom services supported?
Yes. B2B wholesalers and brands can utilize custom services including specialized logo printing, bespoke packaging designs, and color alterations to match brand requirements.
